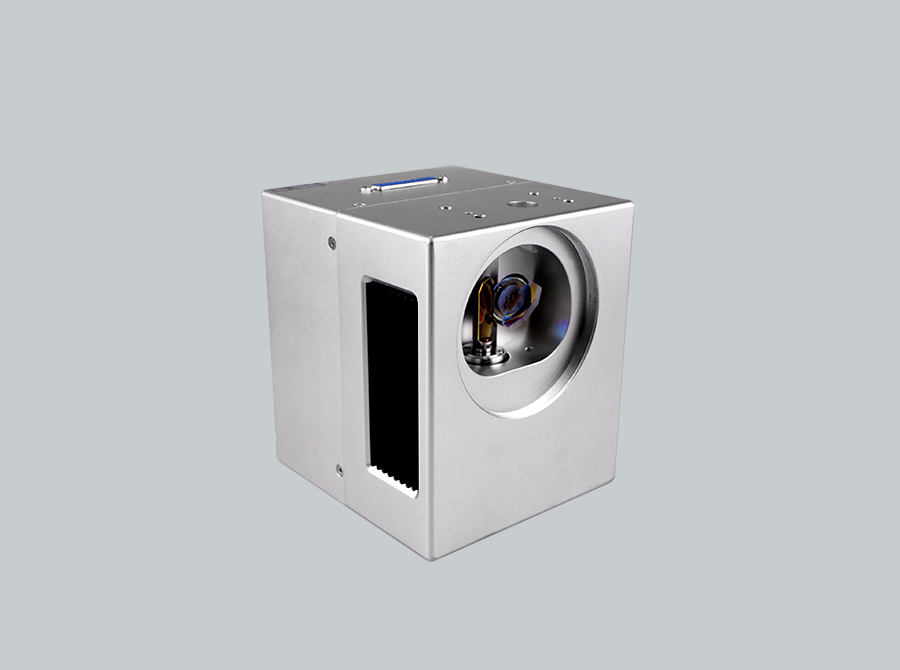

光电振镜方头

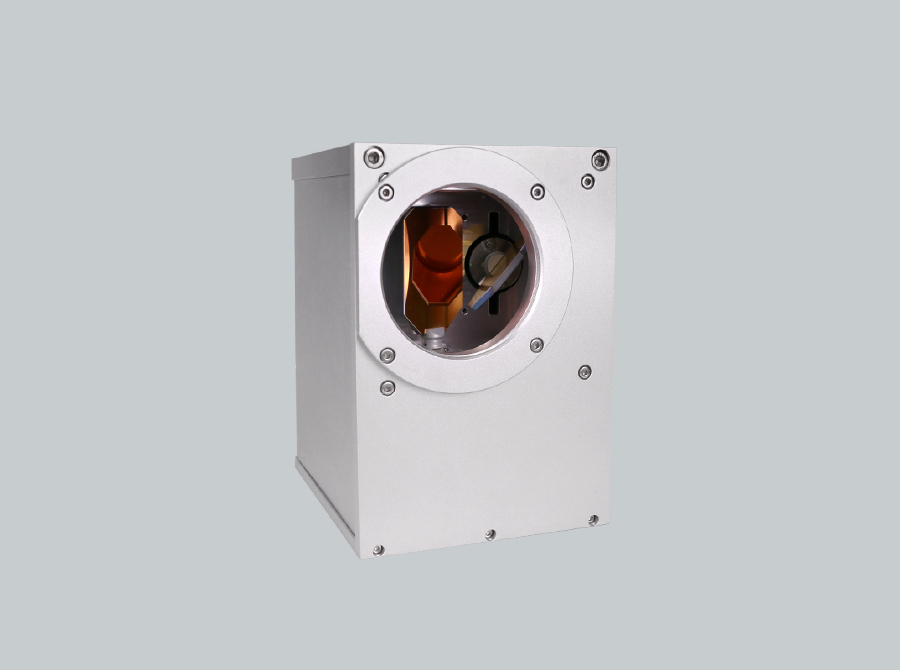

光电振镜方头

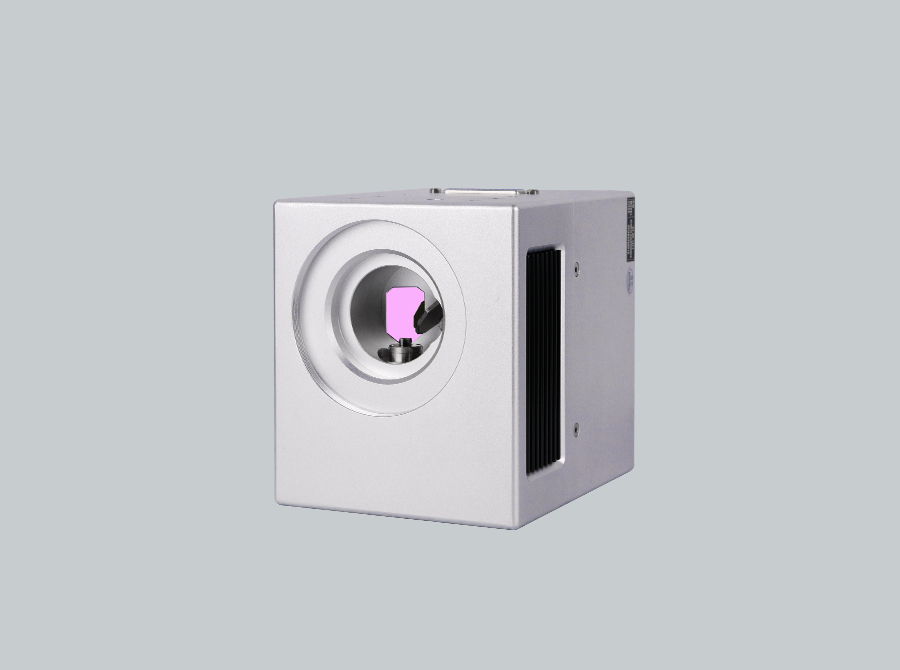

光电振镜方头

光电振镜方头

产品特点 1.配置丰富,7-50mm孔径可选,各种镀膜可选;
2.优选振镜镜片,镀膜多样,平整度好,损伤阈值高;
3.优秀光电编码器性能,线性度高,漂移低;
4.丰富的驱动板调试经验,一致性高,性能稳定;
5.严苛的出厂检测标准,故障率低。

产品应用

Ultrascan I模拟振镜产品型号覆盖全面,适合对性价比要求高或替代进口同类产品的客户。如高精度打标,精密切割,精密微加工等应用。

Ultrascan II模拟振镜产品型号覆盖全面,适合于对速度要求高的客户。如高速飞行打标,精密打标,精密微加工,SLA,极耳切割,激光清洗等应用。

产品参数

UltraScan10

精密打标

Precision   marking

飞行打标Marking-on-the-fly

FPC   及SLA 应用FPC and SLA applications

入口光斑Input Beam Aperture (mm)

10

10

10

光柱位移Beam Displacement (mm)

12.54

12.54

12.54

跟随误差Tracking Error (ms)

0.18

0.14

0.16

重复精度Repeatability (µrad)

<2

<3

<2

零位漂移Offset Drift (µrad/K)

<15

<15

<15

增益漂移Gain Drift (ppm/K)

<80

<80

<80

8小时以上漂移Long-term   drift over 8 hours (mrad)

<0.3

<0.4

<0.15

1%全行程1% of full scale   (ms)

0.40

0.30

0.35

10%全行程10% of full   scale (ms)

1.20

1.00

1.10

定位速度Positioning Speed (m/s)

10.0

20.0

15.0

扫描角度Typical Scan Angle (°)

±12.5

±12.5

±12.5

增益误差Gain Error (mrad)

<5

<5

<5

零位误差Zero Offset (mrad)

<5

<5

<5

非线性度Nonlinearity (%)

<0.4

<0.4

<0.4

电源要求Power Requirements

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

数字接口Digital Interface

XY2-100

XY2-100

XY2-100

工作温度Operation Temperature (℃)

25±10

25±10

25±10

重量Weight (kg)

1.9

1.9

1.9


UltraScan

UltraScan7

UltraScan14

UltraScan20

UltraScan30

UltraScan50

入口光斑Input Beam Aperture (mm)

7

14

20

30

50

光柱位移Beam Displacement (mm)

9.77

16.42

25.25

35.61

62.25

跟随误差Tracking Error (ms)

0.15

0.23

0.45

0.70

1

重复精度Repeatability (µrad)

<2

<2

<2

<2

<2

零位漂移Offset Drift (µrad/K)

<20

<15

<15

<15

<15

增益漂移Gain Drift (ppm/K)

<100

<80

<80

<80

<80

8小时以上漂移Long-term   drift over 8 hours (mrad)

<0.4

<0.3

<0.3

<0.3

<0.3

1%全行程1% of full scale   (ms)

0.22

0.65

0.80

1.20

1.5

10%全行程10% of full   scale (ms)

0.8

1.60

2.50

4.50

 6.5

定位速度Positioning Speed (m/s)

25

10.0

5.0

3.0

 1

扫描角度Typical Scan Angle (°)

±12.5

±12.5

±12.5

±12.5

±12.5

增益误差Gain Error (mrad)

<5

<5

<5

<5

<5

零位误差Zero Offset (mrad)

<5

<5

<5

<5

<5

非线性度Nonlinearity (%)

<0.4

<0.4

<0.4

<0.4

<0.4

电源要求 Power Requirements

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

数字接口 Digital Interface

XY2-100

XY2-100

XY2-100

XY2-100

XY2-100

工作温度Operation Temperature (℃)

25±10

25±10

25±10

25±10

25±10

重量Weight (kg)

1.6

2.3

5.0

5.2

 8.8


UltraScan II

UltraScan   II 10

UltraScan   II 14

UltraScan II 20

UltraScan   II 30

入口光斑Input Beam Aperture (mm)

10

14

20

30

光柱位移Beam Displacement (mm)

12.54

16.42

25.25

35.53

跟随误差Tracking Error (ms)

0.12

0.15

0.35

0.6

重复精度Repeatability (µrad)

<2

<2

<2

<2

零位漂移Offset Drift (µrad/K)

<12

<12

<12

<12

增益漂移Gain Drift (ppm/K)

<50

<50

<50

<50

8小时以上漂移Long-term   drift over 8 hours (mrad)

<0.15

<0.15

<0.15

<0.15

1%全行程1% of full scale   (ms)

0.30

0.35

0.70

1.10

10%全行程10% of full   scale (ms)

0.8

0.90

2.40

4.40

定位速度Positioning Speed (m/s)

18

14.0

6.0

4.0

扫描角度Typical Scan Angle (°)

±12.5

±12.5

±12.5

±12.5

增益误差Gain Error (mrad)

<5

<5

<5

<5

零位误差Zero Offset (mrad)

<5

<5

<5

<5

非线性度Nonlinearity (%)

<0.4

<0.4

<0.4

<0.4

电源要求 Power Requirements

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

数字接口 Digital Interface

XY2-100

XY2-100

XY2-100

XY2-100

工作温度Operation Temperature (℃)

25±10

25±10

25±10

25±10

重量Weight (kg)

1.9

2.3

5.0

5.2
